Automatic Computerized Quilting Fabric Panel Cutting Machine
Datos del producto:
| Lugar de origen: | Cantón, China |
| Nombre de la marca: | YUTENG |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Tamaño de la máquina: | 3200*2200*2500 (milímetro) | Ancho de corte: | 2400 mm |
|---|---|---|---|
| Longitud de corte: | Min 30cm-Infinito | Velocidad de corte: | Corte vertical 10m/m, corte horizontal 5 s/corte |
| Peso de la máquina: | 600 kgs | Potencia máxima: | 1.8kw |
| Voltaje: | Se aplican las siguientes condiciones: | Interfaz del PLC: | pantalla táctil del color 5-inch |
| Componentes principales: | PLC, motor | Alimentación por material: | Barra de presión síncrona |
| Diseño de máquina: | Forma de caja optimizada | Eficiencia de corte: | Más alto |
| Certificación del CE: | Sí | Ancho personalizable: | Sí |
| Modelo personalizable: | Sí | ||
| Resaltar: | automatic computerized quilting machine,fabric panel cutting machine,computerized quilting machine with warranty |
||
Descripción de producto

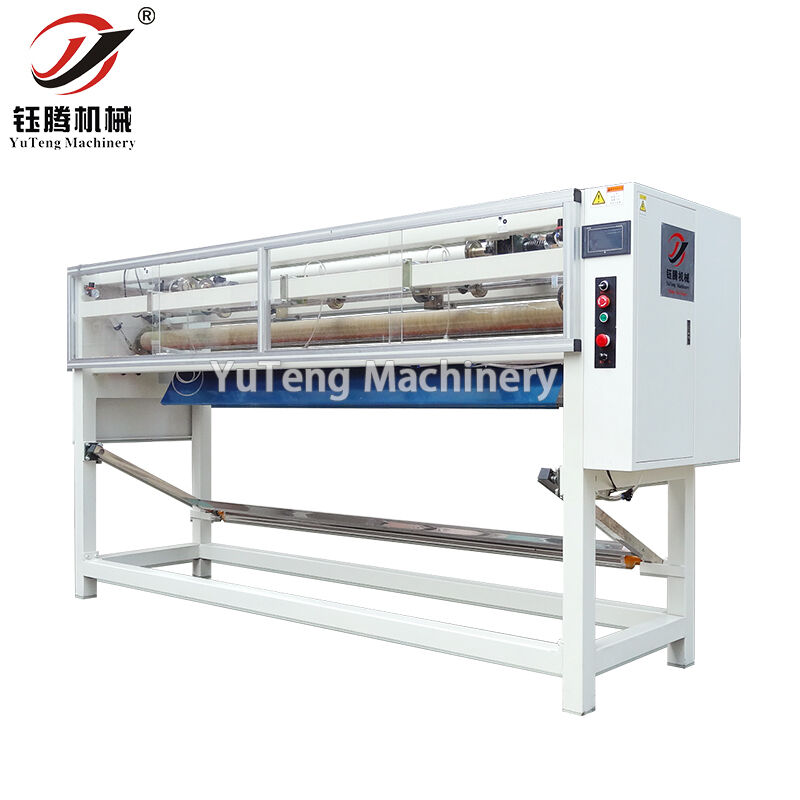

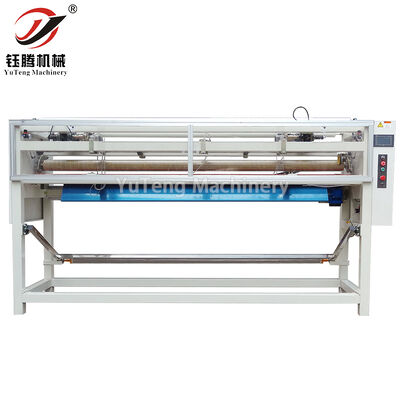

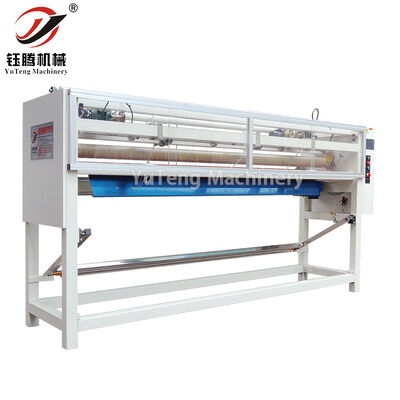

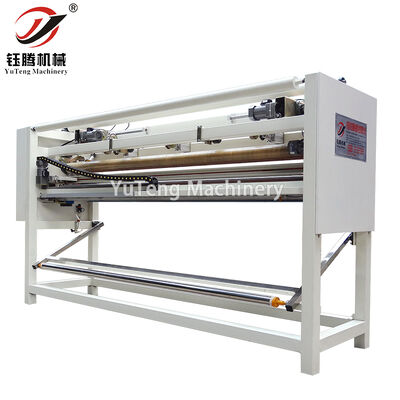

Automatic Computerized Quilting Fabric Panel Cutting Machine
Product Main Features
- National standard 5-inch color touch screen PLC interface for easy operation
- All computer materials, electrical components, and motors are CE certified for extended service life
- Electric length adjustment for both width and length cutting dimensions

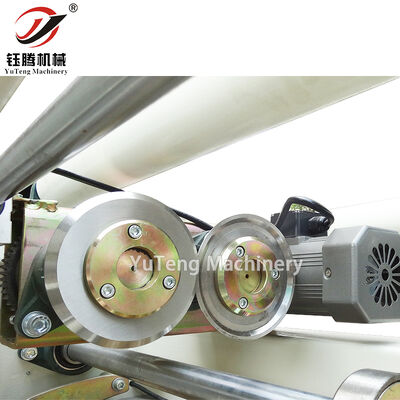

- Synchronous pressure bar for even material feeding and smooth slitting, especially for thin material edge trimming
- Box-shaped optimized design improves running speed and cutting quality with higher efficiency
Applications
Ideal for mattress production, seat covers, sofa cushions, quilt covers, bedcovers, home decoration, export packaging, bedding processing, and automatic cutting after sewing. Suitable for cross-cutting, slitting, edge cutting, quilting products, composite products, or standalone operation.
Technical Parameters
| Model | YTCM96-C |
|---|---|
| Machine size (L×W×H) | 3200×2200×2500 (mm) |
| Cutting width | 2400mm (customizable) |
| Cutting length | Min 30cm to infinite |
| Cutting speed | Vertical cut 10m/min, horizontal cut 5 sec/cut |
| Machine weight | 600KGS |
| Max power | 1.8KW |
| Voltage | 380V/50HZ 3P |
* Customized models available to meet specific requirements
