Computerized Fabric Edge Cutting Machine
Datos del producto:
| Lugar de origen: | Cantón, China |
| Nombre de la marca: | YUTENG |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|
|
Información detallada |
|||
| Peso: | 750 kg | Componentes principales: | PLC, motor |
|---|---|---|---|
| Tamaño de la máquina: | 3200*2200*2500 milímetros | Ancho de corte: | 2400 milímetros |
| Longitud de corte: | Min 30cm-Infinito | Velocidad de corte: | Corte vertical 10 m/min, corte horizontal 5 s/corte |
| Peso de la máquina: | 600 kg | Potencia máxima: | 1.8 kW |
| Voltaje: | 380V/50Hz, trifásico | Interfaz del PLC: | pantalla táctil del color 5-inch |
| Alimentación por material: | Barra de presión síncrona | Diseño de máquina: | Forma de caja optimizada |
| Modelo: | Se aplicará el procedimiento de clasificación de los productos. | Tipo de corte: | Corte transversal, corte longitudinal, corte de bordes |
| Fase: | 3 fases | ||
| Resaltar: | computerized fabric cutting machine,edge cutting machine for textiles,computerized fabric trimmer with warranty |
||
Descripción de producto

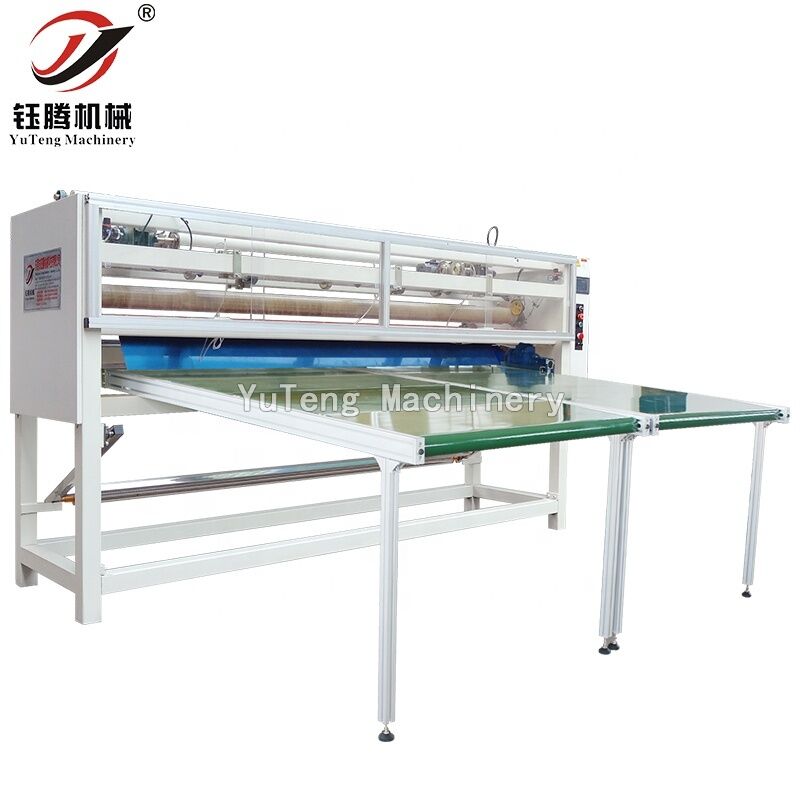

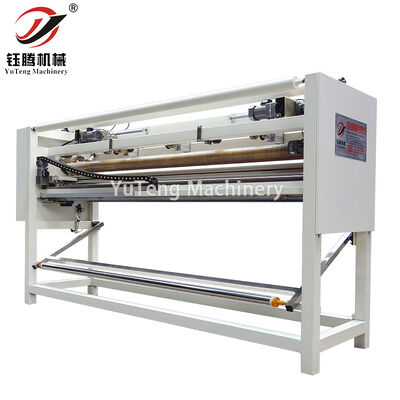

Computerized Fabric Edge Cutting Machine
Product Features
- 5-inch color touch screen PLC interface for easy operation
- CE-certified computer materials, electrical components, and motors for extended service life
- Electric length adjustment for both cutting length and width
- Synchronous pressure bar for even material feeding and smooth cutting, especially for thin material edge trimming
- Optimized box-shaped design improves running speed and cutting quality with higher efficiency
Applications
Ideal for seat covers, sofa cushions, quilt covers, bedcovers, home decoration, export packaging, bedding processing, and automatic cutting after sewing. Suitable for cross-cutting, slitting, edge cutting, quilting products, and composite products. Can also be used as a standalone machine.
Technical Specifications
| Model | YTCM96-C |
|---|---|
| Machine Dimensions (L×W×H) | 3200×2200×2500 mm |
| Cutting Width | 2400 mm (customizable) |
| Cutting Length | Minimum 30 cm to unlimited |
| Cutting Speed | Vertical cut: 10 m/min, Horizontal cut: 5 s/cut |
| Machine Weight | 600 kg |
| Maximum Power | 1.8 kW |
| Voltage | 380V/50HZ, 3-Phase |
* Customized models available to meet specific requirements
